Oil Free Oxygen Compressor Oxygen Booster O2 Compressor 0.27m3/min @ 40bar

Product Categories
Shanghai Royal Machinery Co.,Ltd
Contact Now

Oil Free Oxygen Compressor Oxygen Booster O2 Compressor 0.27m3/min @ 40bar

Brand Name : royal

Certification : ce

Place of Origin : shanghai

MOQ : 1 unit

Price : usd2100/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 units per month

Delivery Time : 15days

Packaging Details : standard export package

Contact Now

0.04m3/min 0.27m3/min @40bar Oil Free Oxygen Compressor O2 Compressor



0.27m3/min @40bar parameters:



Compressor Model No. MW-0.27/(4~6)-40
  Type Z type
  Compressed media Oxygen
  Capacity (Nm3/min) 0.27
  Compression stage 2
  Cylinder 2
  Way of transmission Belt
  Noise (dB) ≤75
  Way of cooling By air
  speed (r/min) 550
  Inlet pressure(MPa) 0.4~0.6
  Outlet pressure(MPa) 4.0
  Inlet temperature(℃) 30
  Outlet temperature(℃) ≤120
  Lubrication Crankshaft,rod,crosshead Oil lubrication
  Lubrication cylinder,filler Oil-free
Electric motor Motor No. Y3-160L-8
  Speed (r/min) 740
  Voltage (V) 380
  Frequency (HZ) 50
  Rated current(A) 63.4
  Rated power(kW) 15
Dimension (l×w×h)mm ≈1400×1000×1200
Weight (kg) ≈700

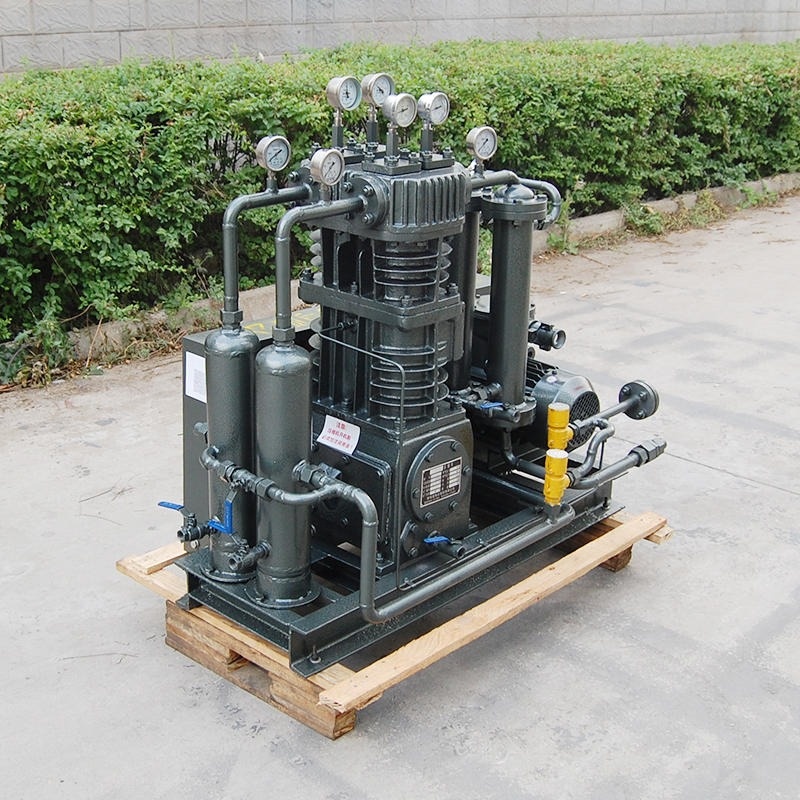

detail photos

Oil Free Oxygen Compressor Oxygen Booster O2 Compressor 0.27m3/min @ 40bar



0.04m3/min @40bar parameters:

Compressor Model No. MW-0.04/(4~5)-40
  Type Z type
  Compressed media Oxygen
  Capacity (Nm3/min) 0.04
  Compression stage 2
  Cylinder 2
  Way of transmission Belt
  Noise (dB) ≤75
  Way of cooling By air
  speed (r/min) 550
  Inlet pressure(MPa) 0.4~0.6
  Outlet pressure(MPa) 4.0
  Inlet temperature(℃) 30
  Outlet temperature(℃) ≤120
  Lubrication Crankshaft,rod,crosshead Oil lubrication
  Lubrication cylinder,filler Oil-free
Electric motor Motor No. Y3-112M-4
  Speed (r/min) 1430
  Voltage (V) 380
  Frequency (HZ) 50
  Rated current(A) 8.5
  Rated power(kW) 4
Dimension (l×w×h)mm ≈1000×800×900
Weight (kg) ≈400



Oil Free Oxygen Compressor Oxygen Booster O2 Compressor 0.27m3/min @ 40barOil Free Oxygen Compressor Oxygen Booster O2 Compressor 0.27m3/min @ 40bar
